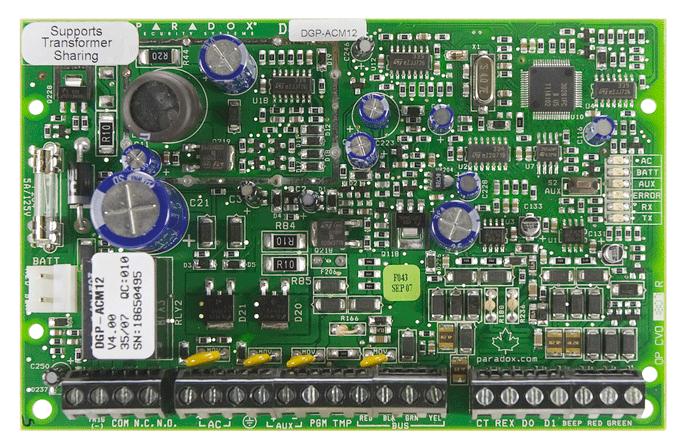

ACM12 4 -WIRE ACCESS CONTROL MODULE

Description

FEATURES:

• Transformer Sharing: Use one transformer to power multiple modules that have this feature
• Grant access via card and/or panel access code with the R915
• Arm with card and pin with the R915
• Connections for 1 door (card reader, REX, door contact and lock output)
• Connect only 4 wires between the reader and ACM12 module when using a R910 or a R915 reader
• In-field firmware upgradeable via CONV4USB and WinLoad
• Automatic unlocking schedule
• Door Left Open and Door Forced Open options
• Door unlock and extended delay timers
• Unlock door manually with button or PGM event
• Unlock Door On Fire Alarm option
• Safe Mode option (during a communication loss, the access control door connected to the module can grant access to up to 4 specified cards or any valid access card)
• Built-in supervised 1.5A switching power supply
• Push button to activate or deactivate the Auxiliary output
• Supports 4-wire and 26-bit Wiegand card readers
• Fits in a 20cm x 25.5cm x 7.6cm metal box
